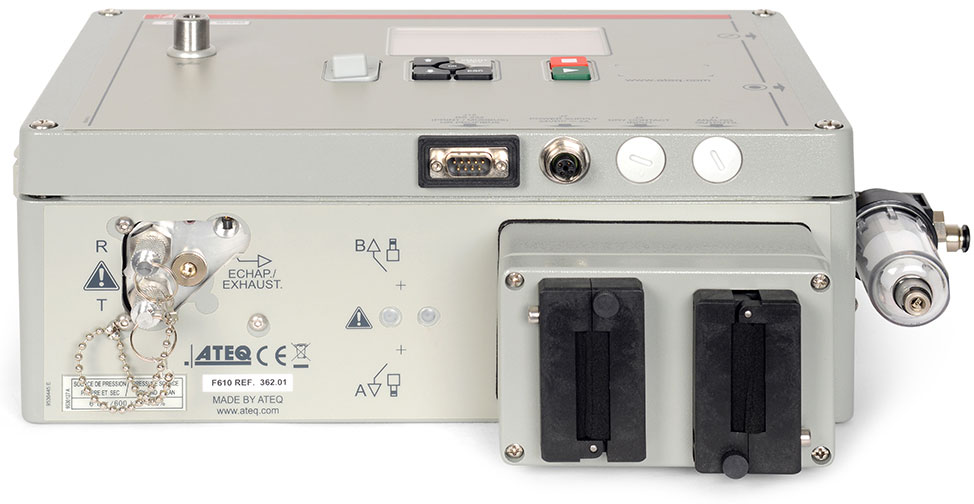

F610 – INSTRUMENTO DE PRUEBA DE FUGAS CON CUBIERTA IMPERMIABLE PARA EL CONTROL DE CALIDAD INDUSTRIAL

Después de 47 años, y 250 000 probadoras instalados en más de 5000 clientes en todo el mundo, ATEQ presenta su revolucionaria probadora de fugas: F610.
Este instrumento es particularmente adecuado para lugares de trabajo contaminados (polvo, aceite, etc,) Nuevo módulo electrónico, nuevo modulo de medición, nueva interfaz, nuevos accesorios…

Todo se ha hecho para mejorar su control de calidad.

En el interior se encuentra la última tecnología de prueba de fugas que le garantizará el ciclo de prueba de fugas más rápido y preciso del mercado.


F610 : APPLICATIONS

Automotive, domestic appliances, medical, aeronautic, defense, fluid and electrical components, food and cosmetic packaging…

F610 : FEATURES

• Differential pressure decay leak measurement. Use in pressure and vacuum
• Large range of leak measurement (ΔP) F.S. : 50 Pa, 500 Pa or 5000 Pa
• Mechanical or electronic regulator from vacuum to 20 bar
• 128 programs
• Setting on line (via USB)
• 2 languages (English + other one)
• Manual calibration on front panel with calibrated leak
• Data storage on internal memory or USB key

TEST MODES :

• ΔP (Pa, 1/10 Pa)
• ΔP/t (Pa/s, 1/10 Pa/s)
• Flow units (sccm, mm3/s, cm3/s, cm3/min, cm3/h…)
• Blockage test
• Burst test
• Sealed components test
• And others, depending on your applications

ENVIRONMENT :
ROHS standard

FLEXIBLE COMMUNICATION FORMAT :

• RS232: printer, modbus RTU
• Slave USB: PC supervision (WinAteq 300, sesame)
• Master USB: USB key to transfert (parameters, results, …)
• Option Fieldbus: profibus, devicenet, profinet, Ethernet/IP

MEASUREMENT CHARACTERISTICS :

F610 : SPECIFICATIONS

  • PHYSICAL

    • Weight : 10 Kg
    • Dimensions : (WxHxD) 380 x 287 x 120 mm
  • ELECTRICAL SUPPLY

    • 24 V DC/2A or 100 – 240 V AC/50W
  • TEMPERATURE

    • Operating : + 5°C at + 45°C
    • Storage : 0°C at + 60°C
  • INTERFACE

    • Graphic color screen with simple and intuitive menu-driven operator controls
    • SMART KEY : programmable key with user’s functions
  • AIR SUPPLY

    • Command 4/6 bar
    • Pressure 1 or 2 bar > test pressure
    • Clean and dry air
    • Air quality standard to be applied (ISO 8573-1)

F610 : OPTIONS

• 9 inputs / 5 local outputs compatible with 5 series instruments
• 6 inputs/ 6 outputs 24 V programmable for external automation
• Electronic regulator
• Dual pressure
• Automatic calibration check
• 2 pneumatic outputs for control of sealing connectors
• Memory card for archiving results (1 million)

F610 : FACTSHEETS

Detailed information about the F610 leak test instrument – waterproof case including features, specifications, etc.

F610 : TECHNOLOGY

By far the most popular technology, differential pressure decay uses a reference volume to test your part. This helps compensate for any ambient pressure or temperature variations as they occur on both parts simultaneously.
Only a leak on the test part will result in a movement of our transducer’s membrane.

The second advantage of this method is that the accuracy does not drop with the test pressure as the transducer is measuring pressure differences between the two circuits, as opposed to the traditional pressure decay technology that measures pressure drops against the atmosphere.

Direct measurement principle
The part under test 3 and the reference part 5 are filled to an identical pressure. A differential sensor 4 measures the pressure variation between the part under test  3 and the reference part 5. In some applications, the reference part can be replaced by a cap.

Desensitized test
This  mode  is  used  for  the  measurement  of  large  leaks,  when  the  reject  level  required  is above the full scale of the differential sensor.
The  test  pressure  is  applied  to  the  input  of  the  part  under  test  3.  The  measurement  is performed by the pressure sensor 2.

Other type of tests are available in option
