MF570 – PROBADOR DIFERENCIAL DE MICRO FLUJO

ATEQ innova en la industria de la medición con este nuevo instrumento: el MF570. Asocia la velocidad con la precisión de la medición de fugas a través de la medición de la caída de presión diferencial y la estabilidad.


MF570 : APPLICATIONS

APPLICATIONS :

Leak detection and flow control: valve seats, gear boxes, hydraulic components, motors, control of aerosols, injectors…

MF570 : FEATURES

APPLICATIONS :

Leak detection and flow control: valve seats, gear boxes, hydraulic components, motors, control of aerosols, injectors…

• Measurement range: 2 / 20 / 200 ml/min
• Measurement units: SI, USA (SAE) and custom unit
• Indications of the ambiant temperature and atmospheric pressure
• Measurement element fully integrated into one module
• 16 programs

MECHANICAL PRESSURE REGULATION :

• Vacuum / 5-50 kPa / 20-400 kPa / 500-900 kPa / 500-1600 kPa

ENVIRONMENT :
Normes ROHS

FLEXIBLE COMMUNICATION FORMAT :

• RS232: printer, P.C. and memory modules
• RS232: intelligent RC5 remote control
• RS485: ATEQ network
• Time and date, language and units choice, test customisation

ELECTRONICAL PRESSURE REGULATION :

Vacuum / 1-10 kPa / 5-50 kPa / 20-200 kPa / 50-500 kPa / 100-1000 kPa / 100-1600 kPa / 100-2000 kPa

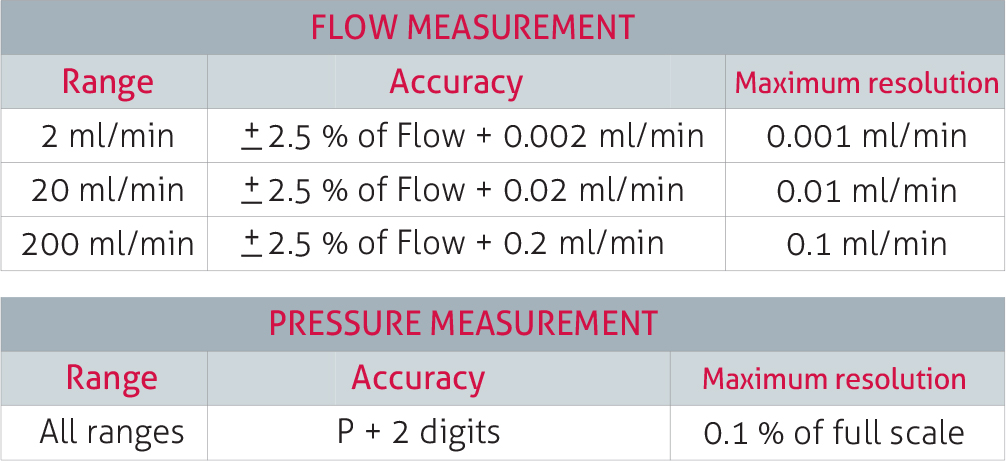

MEASUREMENT RANGES :

MF570 : SPECIFICATIONS

  • PHYSICAL

    • Weight : Approximately 7 Kg
    • Dimensions : (WxHxD) 537x157x381 mm
  • EXTERNAL ELECTRICAL SUPPLY

    • 24VDC/1.6A ou 110 à 240VAC
  • TEMPERATURE

    • Operating : +10°C at + 45°C
    • Storage : 0°C at + 60°C
  • INTERFACE

    • Navigation keys
    • 4-line LCD display
    • Results indicator lights
  • AIR SUPPLY

    • Clean and dry air
    • Air quality standard to be applied (ISO 8573-1)

MF570 : OPTIONS

• 7 inputs / 5 outputs
• 2 pneumatic outputs for control of sealing connectors
• 6 x 24 V programmable outputs for external connection
• Electronic regulator
• Dual pressure
• High speed valve
• 2 analogic outputs: current or voltage
• Fieldbus

MF570 : FACTSHEETS

Detailed information about the MF570 including features, specifications, etc.

MF570: TECHNOLOGY

The Mass Flow technology converts a mass of air going through a laminar flow element into a leak value. Should the test part leak, a flow will take place between a reference part and this leak, forcing the air to go through the Mass Flow measuring device that will convert it into a leak value such as cm3.atm/h.

However, unlike traditional Mass Flows, our technology can handle “large leaking” parts on the line without having to reset the unit.
And unlike our competitors again, we do not use heating elements to measure the mass of air, thus reducing the sensitivity to contamination.

We’ve also put our expertise in high pressure testing into the pneumatics of this unit, allowing it to measure with a high level of accuracy at test pressures of up to 20 Bar (300 PSI).

Finally, our Mass-Flow technology comes with the latest temperature compensation feature making sure you get the best results in the industry in the toughest conditions.
